Fendt clutch disc

The clutch disc in Fendt tractors is a key component of the drive system, responsible for transferring torque from the engine to the gearbox. In agricultural tractors like Fendt, the clutch system is extremely important because these machines often operate in demanding conditions where equipment reliability is crucial.

Functioning of the clutch disc in Fendt tractors

The clutch disc in tractors, including models from Fendt, performs several basic functions:

1. Transferring torque: The clutch disc is designed to transfer torque from the engine to the gearbox. Thanks to its operation, the drive is transmitted to the tractor's wheels.

2. Engaging and disengaging the drive: The clutch disc allows for the disengagement of the drive from the gearbox, enabling gear changes and stopping the machine without turning off the engine.

3. Damping shocks: The clutch disc also has the function of damping vibrations and shocks generated by the engine's operation, ensuring smooth and comfortable machine operation, especially in rough terrain.

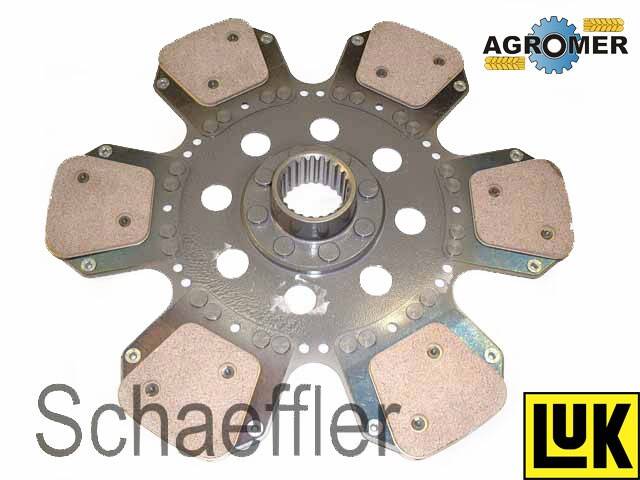

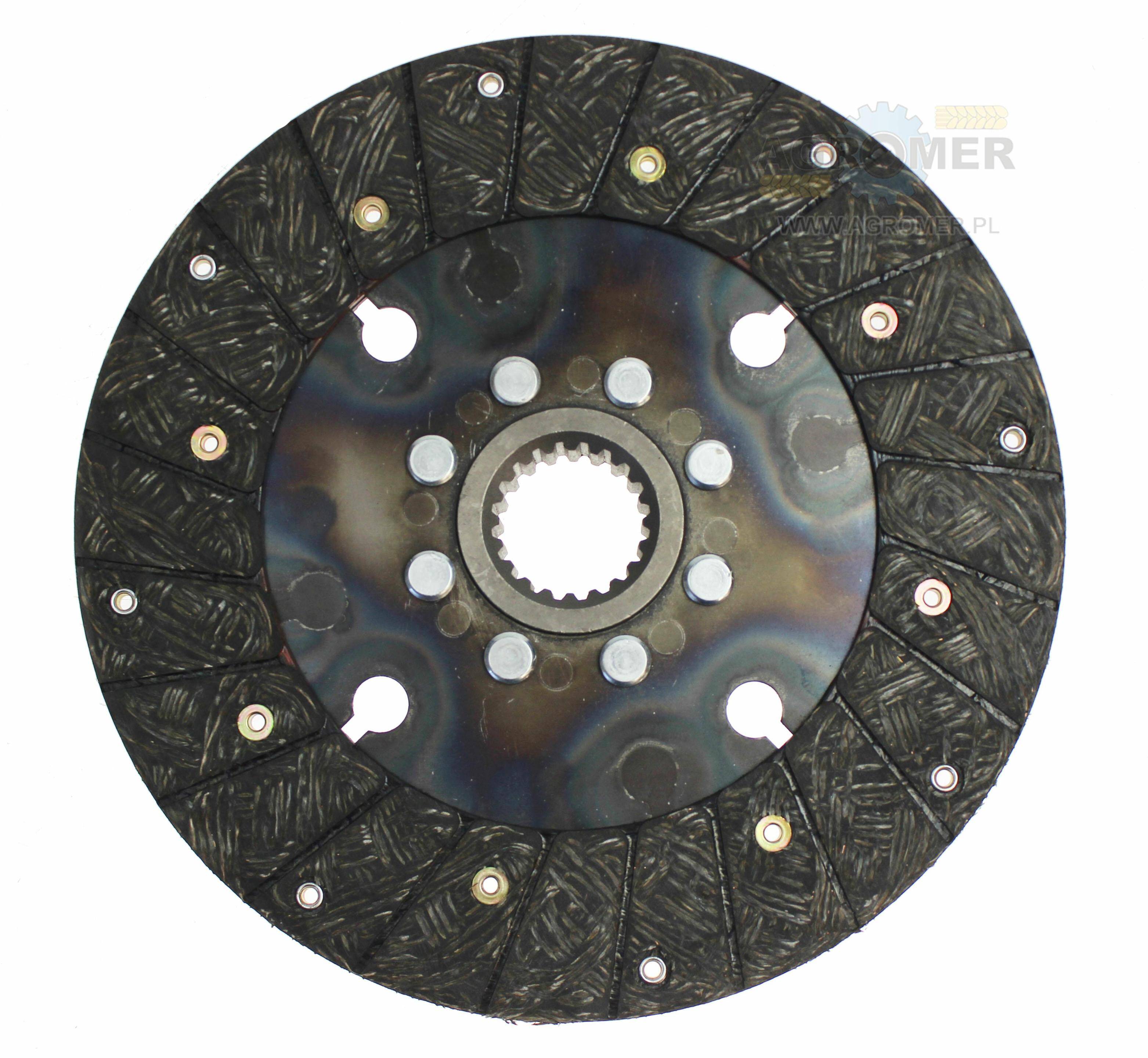

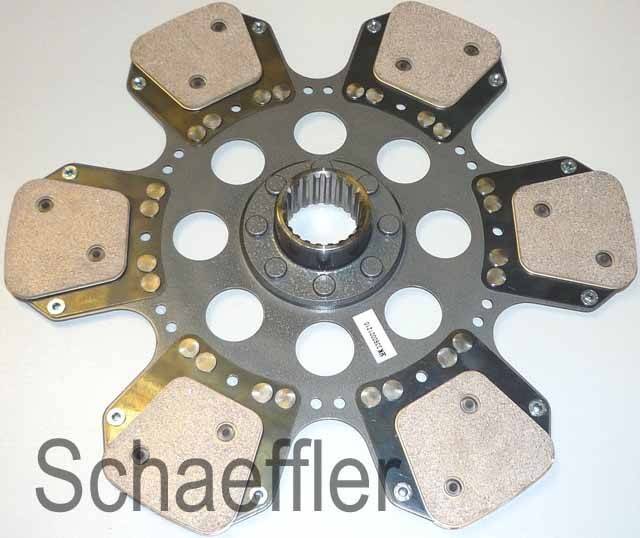

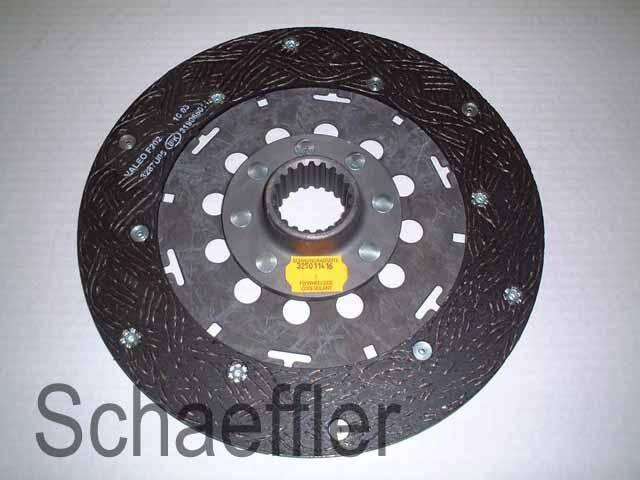

Construction of the clutch disc

The clutch disc in Fendt tractors consists of several essential components:

1. Disc plate: This is the metal part that connects the clutch disc to the engine's drive shaft and gearbox. The plate is rigidly mounted on the shaft, providing adequate stability.

2. Friction linings: The friction linings are the material located on both sides of the disc plate. They come into contact with the engine's flywheel and the clutch pressure plate, allowing for torque transfer. In Fendt tractors, the friction linings are made from materials with high wear resistance and high-temperature tolerance.

3. Damping springs: Often, the disc has springs that help dampen vibrations and jolts, ensuring smoother clutch operation. They also reduce noise in the drive system.

4. Disc shaft: The clutch disc is mounted on a shaft that allows it to rotate and transfer torque from the engine to the gearbox.

Symptoms of clutch disc wear in Fendt tractors

Wear of the clutch disc in Fendt tractors, similar to other agricultural vehicles, can lead to various problems in the operation of the drive system. Here are the most common symptoms indicating the need for clutch disc replacement:

1. Difficulties in engaging gears:

   • A worn clutch disc may cause the gear to be difficult to engage or not engage at all, indicating problems with separating the clutch disc from the flywheel.

2. Clutch slip:

   • If the disc is heavily worn, clutch slip may occur. This means that the disc cannot transfer the full torque from the engine to the gearbox, leading to power loss, jerking, or an increase in engine RPM without appropriate acceleration.

3. Smooth clutch that does not disengage:

   • If the clutch disc is damaged, it may result in difficulties fully disengaging the drive, causing the machine not to stop smoothly.

4. Noise and vibrations:

   • A malfunctioning disc may generate noise or vibrations, especially when pressing the clutch pedal or during driving, indicating wear of the friction linings.

5. Increased resistance when pressing the clutch pedal:

   • A worn clutch disc may cause the clutch pedal to become harder to press, and the operation of the clutch system may become less precise.

Replacing the clutch disc in Fendt tractors

Replacing the clutch disc in a Fendt tractor is a process that requires precision and technical knowledge. Here is a general process for replacing the clutch disc:

1. Preparation

• Secure the vehicle, lift it on an appropriate jack, and then remove the protective covers that allow access to the clutch system.

2. Dismantling covers and components

• Remove all covers, fuel tanks (if in the way), hydraulic system (for tractors with hydraulic drive), and other elements that may block access to the clutch system.

3. Dismantling the gearbox

• Depending on the design of the Fendt tractor, it may be necessary to dismantle the gearbox to access the clutch disc. Unscrew the bolts securing the gearbox and gently remove it.

4. Removing the old clutch disc

• After removing the gearbox, the clutch disc will be visible. Unscrew the bolts securing the clutch disc to the flywheel and carefully remove it.

5. Checking the condition of the flywheel

• Before installing the new clutch disc, check the condition of the flywheel. If you notice any cracks, unevenness, or excessive wear, replace the flywheel or at least resurface it.

6. Installing the new clutch disc

• Install the new clutch disc, ensuring it is correctly positioned and fits the flywheel. Use the appropriate bolts and the tightening torque recommended by the manufacturer.

7. Reinstalling the gearbox and other components

• After installing the new clutch disc, reinstall the gearbox, hydraulic system, and other components that were previously removed.

8. Testing the system

• After completing the replacement, start the tractor and test the operation of the new clutch disc. Check if the clutch operates smoothly and if the gear engages easily and without resistance.

Summary

The clutch disc in Fendt tractors is a key component of the drive system, responsible for transferring torque and enabling smooth engagement and disengagement of the drive. Its wear can lead to difficulties in gear shifting, clutch slip, noise, and vibrations. Replacing the clutch disc in Fendt tractors requires dismantling the gearbox and precise installation of the new disc, which may require experience and appropriate tools. Regularly checking the condition of the clutch disc will help avoid failures and ensure the efficient operation of the tractor in challenging working conditions.
